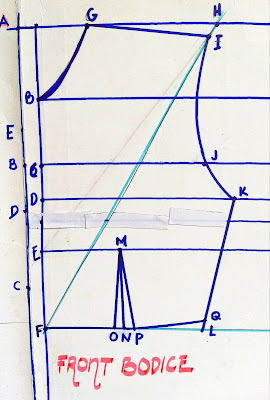

FRONT BODICE PATTERN
1. Draw construction line by tracing the outer edge of the L-square and mark the corner
A.
A.
2. From A, measure 3 inches downward. Label it B.
3. From A, measure 6 inches downward. Label it C.
4. From A, downwards measure 1/2 of the armhole circumference. Label it D.
5. From A, measure the bust height. Label it E.
6. From A, measure the front bodice length. Label it F.
7. Square out points B, C, D, E, and F.
8. From A, measure 2 ½ inches to the right. Label
it G.
it G.
9. Shape the front neckline from point G to B with
a French curve.
a French curve.
10. From A, measure 1/2 of the shoulder
measurement. Label it H.
measurement. Label it H.
11. Connect H and F with a straight line thus
forming a swayed line.
forming a swayed line.
12.From H, measure 1 ½ inches down on the
swayed line. Label it I.
swayed line. Label it I.
13.Connect points I and G with a straight line.
14.From C, measure ½ of the chest width or
shoulder width to the right minus ¾ of an
inch. Label it J.
shoulder width to the right minus ¾ of an
inch. Label it J.
15. From D, measure ¼ of the bust
circumference plus ½ inch for allowance.
Label it K.
circumference plus ½ inch for allowance.
Label it K.
16. Shape front armhole from points I, J and K
with a French curve.
with a French curve.
17. From F, measure ¼ of the waist
circumference plus 1 inch for the front dark
and ½ inch for allowance. Label it L.
circumference plus 1 inch for the front dark
and ½ inch for allowance. Label it L.
18. Connect points L to K with a straight line.
19. From E, measure ½ of the bust distance. Label it M.
20. Square down point M to line FL.
21. Mark the intersection of points M and F as N.
22. From N, measure ½ inch towards point F. Label it O.
23. From N, measure ½ inch towards L. Label it P.
24. Connect points O and M with a straight line.
25. Connect points P and M with a straight line.
26. From L, measure ½ inch upward on line L. Label it Q.
27.Connect point Q to point N with a slight curve.
